A starter (also known as a cranking motor or a starter motor) is a device used to rotate/crank an internalcombustion engine so as to initiate the engine's operation under its own power. During ignition, the solenoid engages a lever that pushes out the drive pinion on the starter driveshaft and meshes the pinion with the starter ring gear on the flywheel of the engine. At our starter factory in Malaysia, we prioritize the precision manufacturing of these components to ensure reliable engine ignition. Once the engine starts, the ignition process ceases, and a spring in the solenoid assembly retracts the pinion gear from the ring gear, halting the starter motor.

Parts of starter

These are the major components of a starter and their functions. Each component plays a vital role in initiating the engine’s combustion process by cranking the engine and ensuring a smooth starting experience. In our starter factory in Malaysia, we specialize in the meticulous manufacturing of these components to uphold high standards of quality and reliability in every engine ignition.

Armature

The armature is the rotating component of the starter motor.

Field Coils

The field coils are wound around the starter motor's armature and their magnetic field interacts with the armature's windings, causing the later to rotate when the starter motor is activated.

Commutator

The commutator allows the electrical current to flow through the armature windings and generate the necessary magnetic field.

Brushes

The brushes transfer electrical current from the battery to the armature windings via the commutator, enabling the generation of the magnetic field.

Solenoid Switch

The solenoid acts as an electromagnetic switch that engages and disengages the starter motor with the engine's flywheel.

Drive Pinion/ Gear

The drive pinion engages with the teeth on the flywheel or flexplate to turn the engine.

Bendix Assembly

The Bendix assembly prevents the starter motor from continuing to spin once the engine has started, reducing wear on the starter and flywheel.

Housing and Mounting

The housing serves as a mounting point for the starter motor, allowing it to be securely attached to the engine block or transmission housing.

Denso Type

Mitsubishi Type

Hitachi Type

Valeo Type

Bosch Type

0124-525-042

Specifications: Voltage: 12V Amperage: 150A Type: SC6/49 Terminals: COM (BSS) / D Manufacturer: BOS (Bosch) Compatible Vehicles: (Not specified — Bosch-based applications)

27060-0M040

Specifications: Voltage: 12V Amperage: 80A Type: S4 Terminals: M / S / IG / L Manufacturer: ND (Nippondenso) Compatible Vehicles: - Toyota Hilux Revo - Toyota Innova - Toyota Fortuner (Engine: 1GD, 2GD)

28100-0D180

Specifications: Voltage: 12V Power: 1.3KW Teeth: 9T Rotation: CW (Clockwise) Type: DEN (Denso) Manufacturer: DEN Compatible Vehicles: NISSAN PATROL Y62, PATHFINDER 5.6 INFINITI Q70

28100-28041 / 0H060

Specifications: Voltage: 12V Power: 1.7KW Teeth: 13T Rotation: CCW (Counter Clockwise) Type: DEN (Denso) Manufacturer: DEN Compatible Vehicles: MITSUBISHI ASX, LANCER, OUTLANDER CITROËN, PEUGEOT, PROTON INSPIRA

28100-0L180

Specifications: Voltage: 12V Power: 2.0KW Teeth: 10T Rotation: CW (Clockwise) Type: ND (Nippondenso) Manufacturer: ND Compatible Vehicles: TOYOTA HILUX REVO, INNOVA, FORTUNER Engine Types: 1GD, 2GD

28100-54380

Specifications: Voltage: 12V Power: 2.2KW Teeth: 10T Rotation: CW (Clockwise) Type: ND (Nippondenso) Manufacturer: ND Compatible Vehicles: NISSAN PATROL Y62, PATHFINDER 5.6 INFINITI Q70

MD174483

Specifications: Voltage: 12V Power: 1.0KW Teeth: 8T Rotation: CW (Clockwise) Type: M0T Manufacturer: M0T Compatible Vehicles: (Not specified — Mitsubishi-based applications likely)

28100-BZ040

Specifications: Voltage: 12V Power: 1.2KW Teeth: 11T Rotation: CW (Clockwise) Type: M0T Manufacturer: M0T Compatible Vehicles: (Not specified — Toyota-based applications likely)

M002T84171

Specifications: Voltage: 12V Power: 2.2KW Teeth: 10T / 32 Rotation: CW (Clockwise) Type: MIT (Mitsubishi) Manufacturer: MIT Compatible Vehicles: (Not specified — Heavy-duty Mitsubishi-based applications likely)

M008T71571

Specifications: Voltage: 12V Power: 2.2KW Teeth: 10T Rotation: CW (Clockwise) Type: M8T Manufacturer: M8T Compatible Vehicles: (Not specified — Mitsubishi applications likely)

ME017085

Specifications: Voltage: 24V Power: 3.2KW Teeth: 9T Rotation: CW (Clockwise) Type: MIT Manufacturer: MIT Compatible Vehicles: (Not specified — Industrial or heavy-duty Mitsubishi applications likely)

M009T61171

Specifications: Voltage: 24V Power: 5.5KW Teeth: 12T Rotation: CW (Clockwise) Type: MIT Manufacturer: MIT Compatible Vehicles: (Not specified — High-power Mitsubishi applications likely)

23300-BC200

Specifications: Voltage: 12V Power: 1.0KW Teeth: 10T Rotation: CW (Clockwise) Type: HIT Manufacturer: HIT Compatible Vehicles: (Not specified — likely Nissan or Hitachi-based applications)

23300-8H300

Specifications: Voltage: 12V Power: 1.4KW Teeth: 13T Rotation: CCW (Counter Clockwise) Type: HIT Manufacturer: HIT Compatible Vehicles: (Not specified — likely Nissan or Hitachi-based applications)

23300-EB71N

Specifications: Voltage: 12V Power: 2.8KW Teeth: 10T Rotation: CW (Clockwise) Type: HIT Manufacturer: HIT Compatible Vehicles: (Not specified — likely high-power diesel applications, Nissan)

23300-EB71N

Specifications: Voltage: 12V Amperage: 100A Type: SC6 Terminals: L / S Manufacturer: HIT (Hitachi) Compatible Vehicles: (Not specified — fits Hitachi-equipped systems)

23300-0T600

Specifications: Voltage: 12V Power: 2.2KW Teeth: 9T Rotation: CW (Clockwise) Type: HIT Manufacturer: HIT Compatible Vehicles: (Not specified — likely for Nissan or similar Japanese models)

8-98028-198-0

Specifications: Voltage: 12V Power: 2.3KW Teeth: 9T Rotation: CW (Clockwise) Type: HIT Manufacturer: HIT Compatible Vehicles: (Not specified — likely Isuzu or Japanese diesel vehicles)

129900-77010

Specifications: Voltage: 12V Power: 2.3KW Teeth: 9T Rotation: CW (Clockwise) Type: HIT Manufacturer: HIT Compatible Vehicles: (Not specified — likely Hino or Toyota industrial/diesel)

96208781

Specifications: Voltage: 12V Power: 1.0KW Teeth: 10T Rotation: CW (Clockwise) Type: VAL Manufacturer: VAL Compatible Vehicles: (Not specified — likely GM/Daewoo applications)

256u-11000-CB

Specifications: Voltage: 12V Power: 1.1KW Teeth: 10T Rotation: CW (Clockwise) Type: VAL Manufacturer: VAL Compatible Vehicles: (Not specified — likely Hyundai or Kia vehicles)

02M911023M

Specifications: Voltage: 12V Power: 1.1KW Teeth: 10T Rotation: CCW (Counter Clockwise) Type: VAL Manufacturer: VAL Compatible Vehicles: (Not specified — likely VW Group applications)

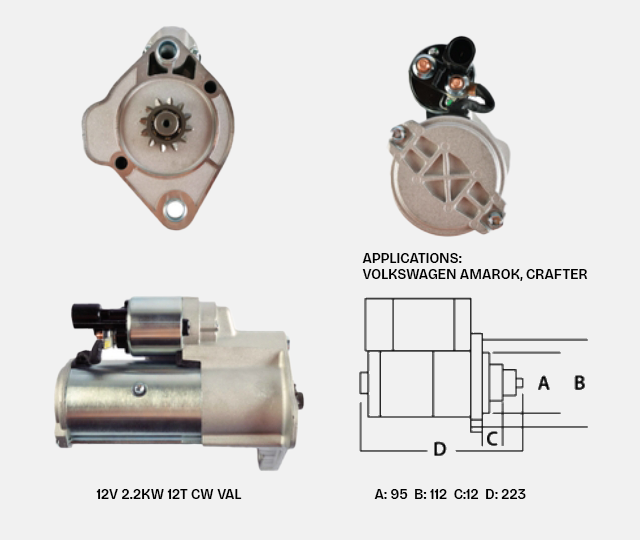

2H0911023AX

Specifications: Voltage: 12V Power: 2.2KW Teeth: 12T Rotation: CW (Clockwise) Type: VAL Manufacturer: VAL Compatible Vehicles: VOLKSWAGEN AMAROK, CRAFTER

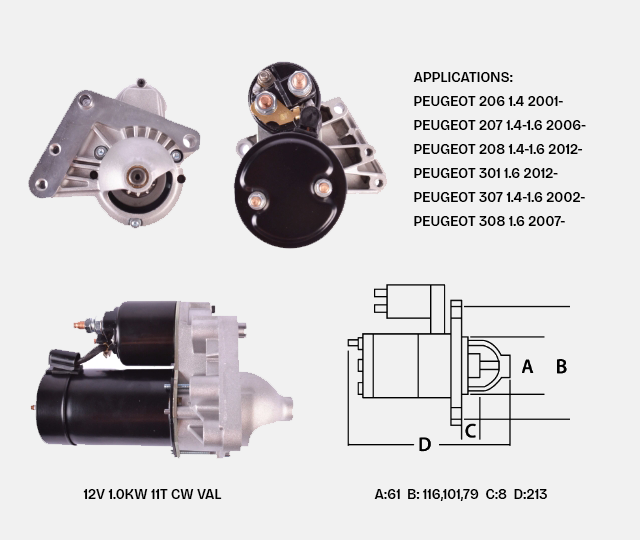

D6RA110

Specifications: Voltage: 12V Power: 1.0KW Teeth: 11T Rotation: CW (Clockwise) Type: VAL Manufacturer: VAL Compatible Vehicles: PEUGEOT 206 1.4 16V (2001–2006) PEUGEOT 307 1.4 16V (2001–2008) PEUGEOT 308 1.6 (2007–)

36100-02511

Specifications: Voltage: 12V Power: 0.8KW Teeth: 8T Rotation: CW (Clockwise) Type: VAL Manufacturer: VAL Compatible Vehicles: (Not specified — likely Hyundai/Kia small engines)

0001-107-108

Specifications: Voltage: 12V Power: 1.2KW Teeth: 9T Rotation: CW (Clockwise) Type: BOS Manufacturer: BOS (Bosch) Compatible Vehicles: (Not specified — Bosch platform, likely European vehicles)

0001-108-003

Specifications: Voltage: 12V Power: 1.4KW Teeth: 9T Rotation: CW (Clockwise) Type: BOS Manufacturer: BOS (Bosch) Compatible Vehicles: (Not specified — Bosch platform, general Euro/Asian fitment)

28100-0L080

Specifications: Voltage: 12V Power: 2.0KW Teeth: 9T Rotation: CW (Clockwise) Type: BOS Manufacturer: BOS (Bosch) Compatible Vehicles: (Not specified — likely Toyota diesel applications)

0001-112-039

Specifications: Voltage: 12V Power: 1.1KW Teeth: 9T Rotation: CCW (Counter Clockwise) Type: BOS Manufacturer: BOS (Bosch) Compatible Vehicles: (Not specified — likely European light-duty vehicles)

0001-241-001

Specifications: Voltage: 24V Power: 5.5KW Teeth: 12T Rotation: CW (Clockwise) Type: BOS Manufacturer: BOS (Bosch) Compatible Vehicles: (Not specified — heavy-duty industrial or truck engines)

0001-416-005

Specifications: Voltage: 24V Power: 5.4KW Teeth: 11T Rotation: CW (Clockwise) Type: BOS KB Manufacturer: BOS KB (Bosch KB Series) Compatible Vehicles: (Not specified — high-power applications, likely commercial trucks)
